HY-TW02

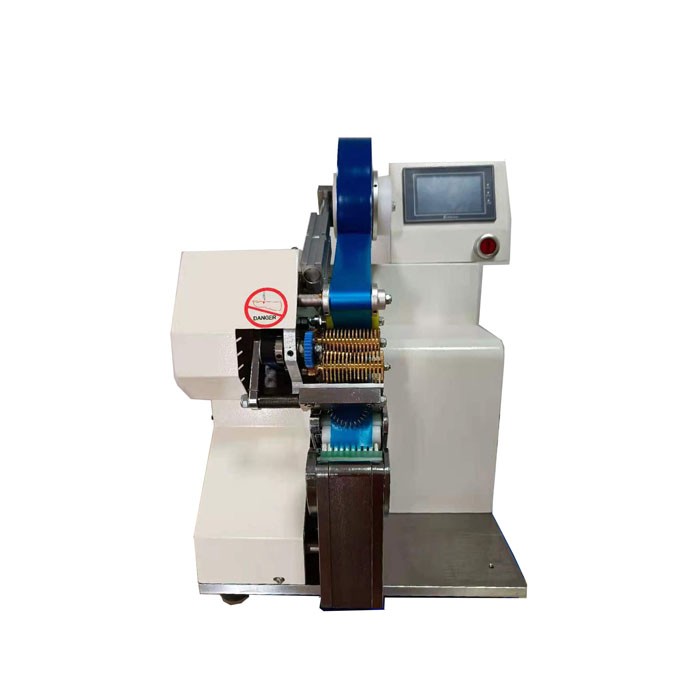

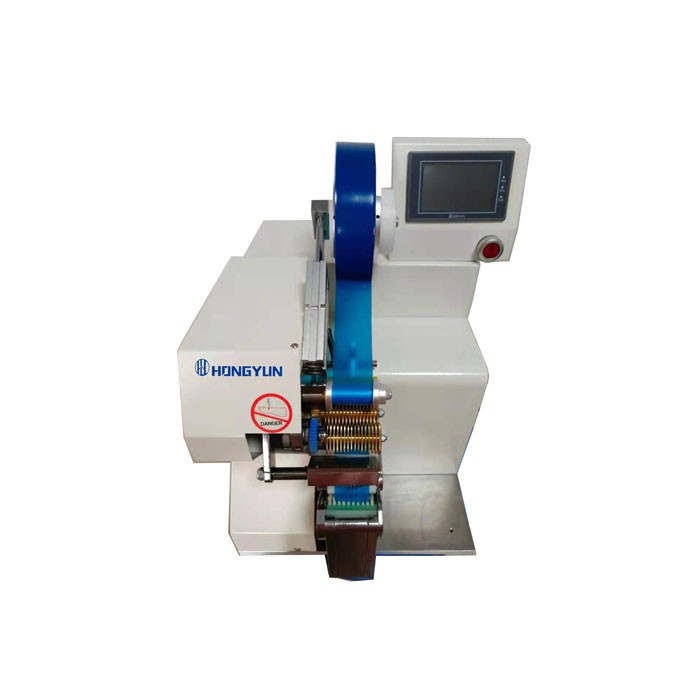

HY-TW02 Tape Winding Machine
Function
1. Compatible with the use of different types of non-release paper tape materials (such as cloth tape, PVC tape, etc.).
2. Keep smooth, no wrinkle, can ensure the cloth tape wrap and overlap at each round a half cover on the previous lap.
3. Wrapping method: Point wrap in the same position.
4. Achieve the setting of lap and speed, the yield can be displayed.
5. Blades can be replaced quickly.
Technical Parameters
* Processing Capacity：50 times/min
* Tape Length：50mm ( Longer than 50mm according to the tape material)
* Tape Width：25~45mm
*Applications Product : Cable length ≥70mm Cable Diameter ≤10mm
* Air Pressure：0.5-0.6 MPa
* Supply Power：220V 50HZ 200W
* Dimensions：L60 X W52 X H72 CM
* Weight：48kgs
