HY-3F

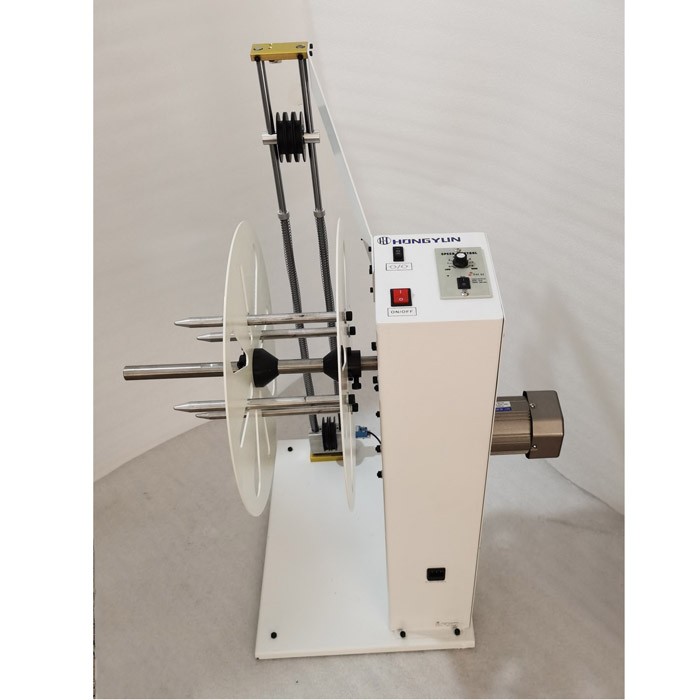

HY-201F Automatic wire feeder
This feeder is provided with AC motor which renders stable delivery of wire to the cutter. This feeder is further outlined with sensor and warn devices. In case of short supply of wire, absence of terminal, over feed of wire, and feed speed out of control. It senses and transmits the signal to the wire cutting machine and crimping machine to stop their operation. It is suitable to load shaft would wire roll or ball reeled wire roll.
Model | HY-201F |
Supply | 220V |
Motor Power | 120W |
Load-Bearing | 15kgs |
Speed | 1-10 speed (Fastest : 1m/s) |
Dimensions | 500*600*950 mm |
Independent brake,the chain carries the motor.(Durability) | |
