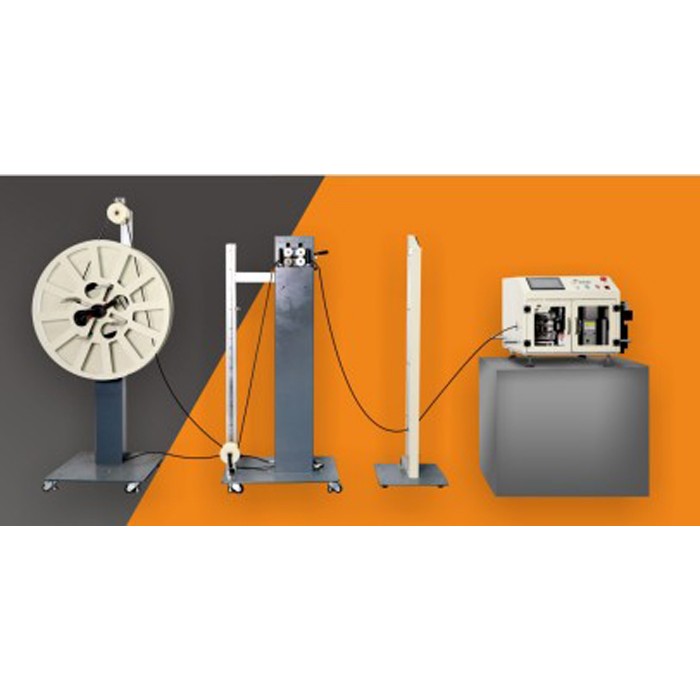

HY-221CO Corrugated tube cutting machine
HY-221CO corrugated tube cutting machine
Product Features

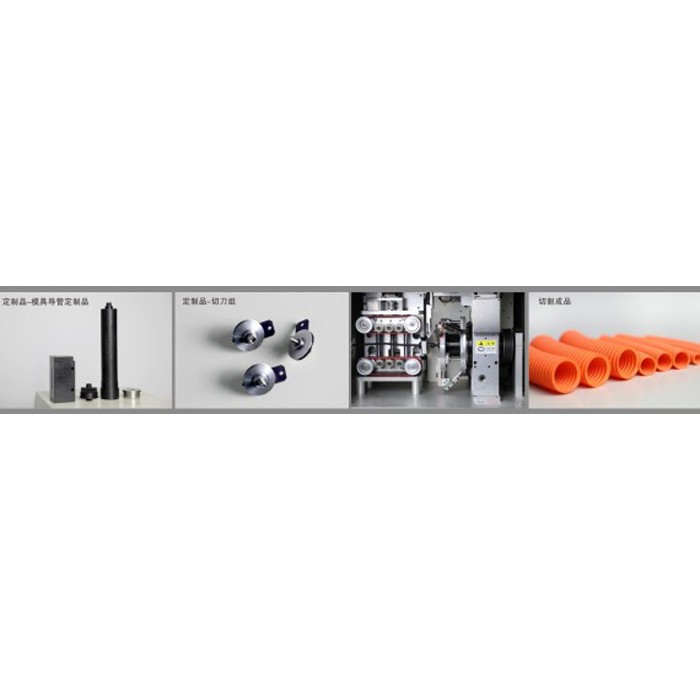

* Use rotating blades, each blade has a set of guiding block in order to make sure it cut on the peak;
* Feeding system is controlled by the servo motor, in normal cases,the feeding speed can reach up to 3meters per second;
* Rollers will be designed based on the shape of the corrugated tube which will be exactly fit to the togeter;
Technical Parameters
* Power supply : 220V 50/60HZ
* Rated power : 2000W
* Cutting length : 5-9999.9mm
* Cutting accuracy : +1 wave
* Feeding Speed : 0-3000mm/s
* Weight : 100 kgs
* Dimension : 560*560*520mm
* Cutting Capability : Cut on peak
