HY-208F

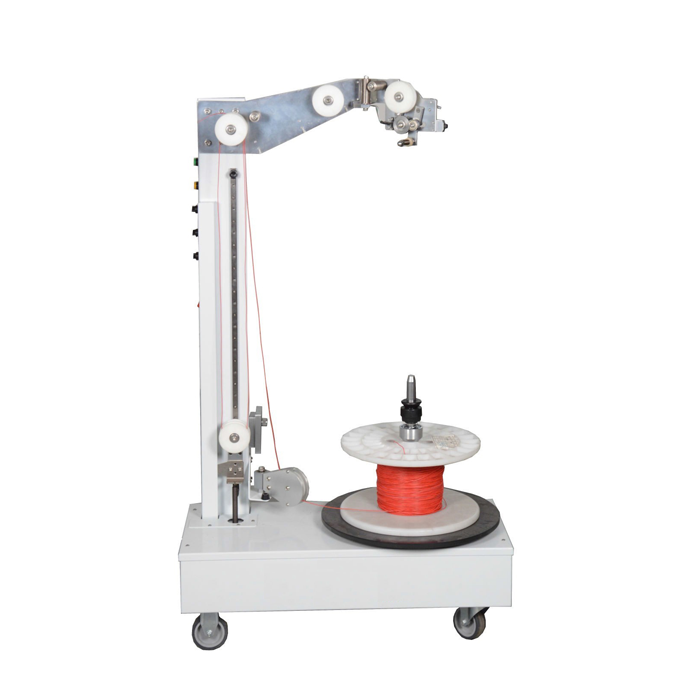

Automatic Wire Feeding Machine HY-208F
Product Features:
* Applied for the wires with Roll or Reel packing.
* Automatic control of wire feeding speed. Suitable for matching with automatic terminal crimping machine and computerized wire stripping machine.
* The wire delivery range: AWG#10~AWG#36, it is more flexibility for the soft or hard wires, the max. wire feeding speed is 6m/s.
* Effectively saving production cost and raising productivity.
Technical Parameters:
Item | Performance |
Product Name | Automatic Wire Feeding Machine |
Model | HY-208F |
Applicable Coil Diameter | 90~300mm |
Wire Range | AWG#10~AWG#36 |
Max. Speed: | 6m/s |
Power | 220V 50HZ, 0.4KW |
Coil Weight | 100KG |
Dimension | Length:750mm Width:400mm Height:1200mm |
