HY-2.5 Modular Stripper-Crimper

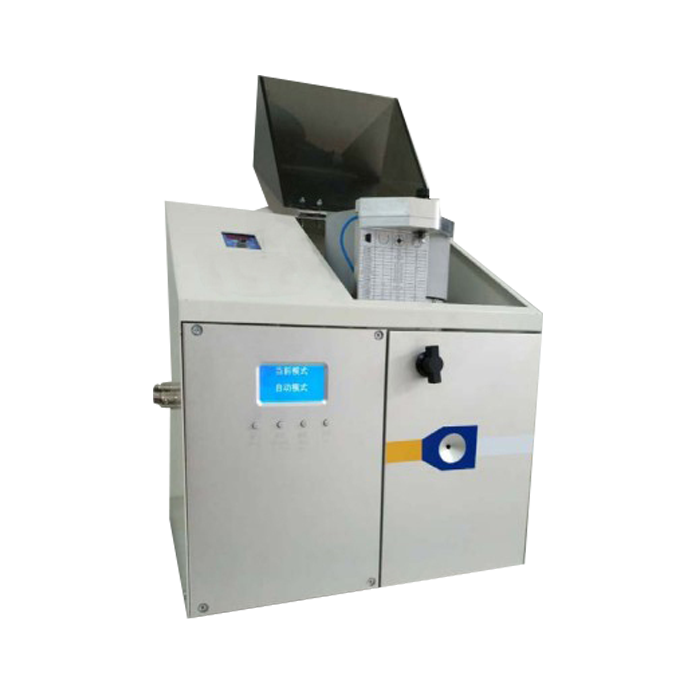

HY-25FM Pre-insulated Terminal
Stripping And Crimping Machine
Function :
Wire threading, stripping and terminal crimping are finished at one time, especially for crimping international standard tube terminal;
Vibrating plate for terminal feeding, convenient and fast in changing the terminal;
It simplifies the complicated procedure, the overall efficiency is increased by 3-4 times compared to the manual working, with a greater cost performance;
The wire inserting part is horn shape which is convenient for wire threading;
The wire stripping diameter and crimping height are automatically adjusted;
Sensitive pneumatic control, fast crimping;
mported components and cylinder ensures its stable performance.
Technical parameter:
Wire range : 0.5-2.5 mm2 (AWG21#-AWG13#)(Other size can be specially ordered)
Stripping length : 6-10mm2(Other size can be specially ordered)

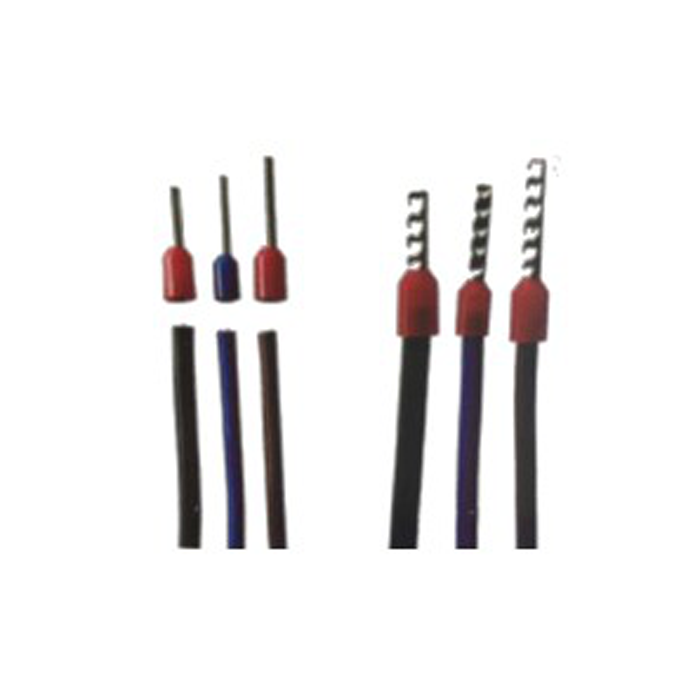

Applied terminal : 6/8/10mm(Other size can be specially ordered)
Air supply 0.5~0.7MPa
Power : 220V/50HZ
Dimension : 400 x 340 x 450 mm
Weight : 32kg
Function : wire threading, stripping and crimping can be finished at the same time
