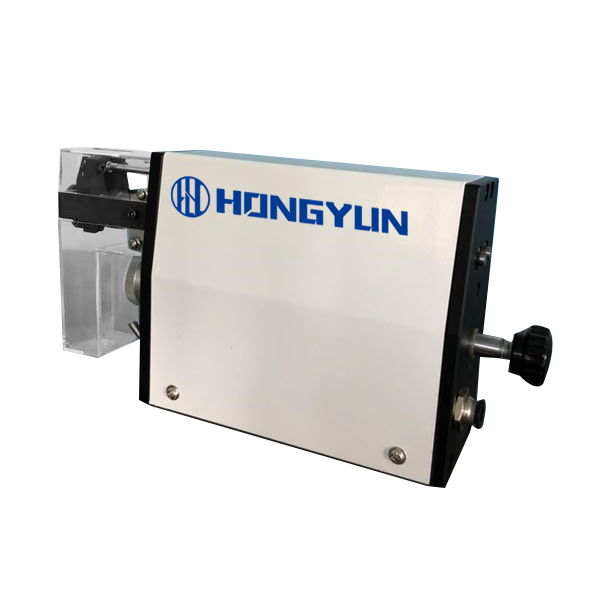

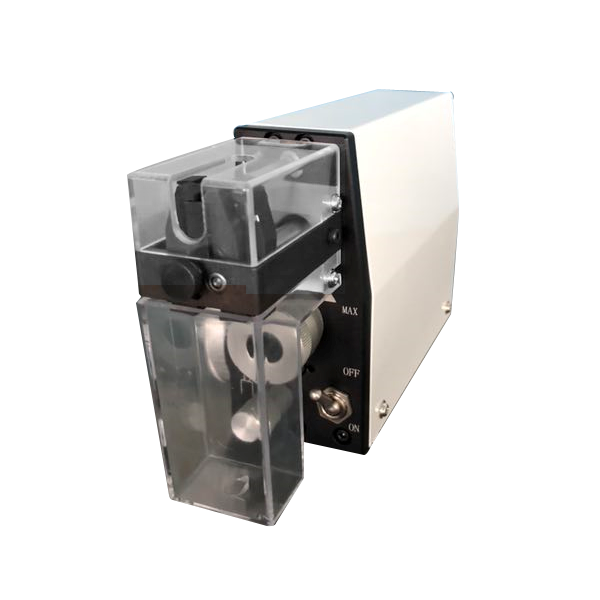

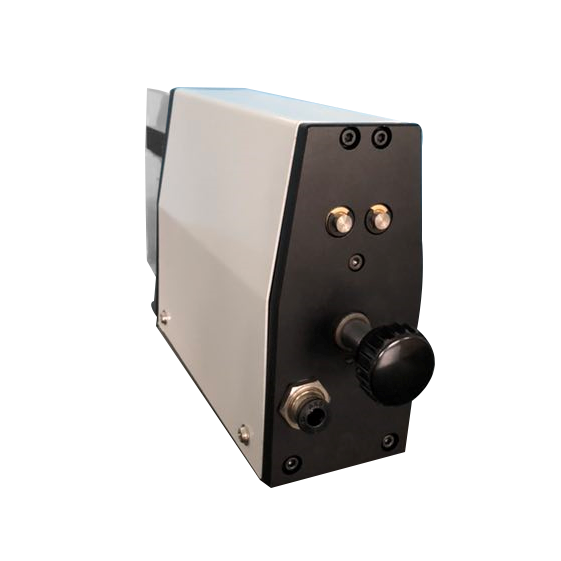

HY-1 Pneumatic Stripping Machine
HY-1 Pneumatic Stripping Machine
Technical Specifications
Wire Size Range: AWG30-14 (0.05-2.08mm2)
Precision of Diameter Setting: 0.01mm (0.001")
Max. Outer Cable Diameter (Partial strip/full strip) Strip: 3.2/3.2mm(0.12"/0.12")
Length (Partial strip/full strip): 1-20/20mm (0.04-0.78"/0.78")
Graduated Partial Strip Increments: 0.5mm (0.019")
Graduated Partial Strip Increments: 2.0mm (0.078")
Cycle Time (max. Stripping length): ca. 0.3 s
Stripping Blade: V-blades
Compressed Air: 5-6 bar (75-90psi)
Compressed Air Consumption: 0.28 l/cycle
(Operation pressure at 6bar/90 psi)
Noise Level (equivalent permanent sound pressure level): <75dB(A)
Dimensions (XWXH): 265X70X135MM (10.4X2.8X5.3")
Weight (Net/Gross): 2.0kg/2.4kg (4.4/5.3lb.)
