Concept

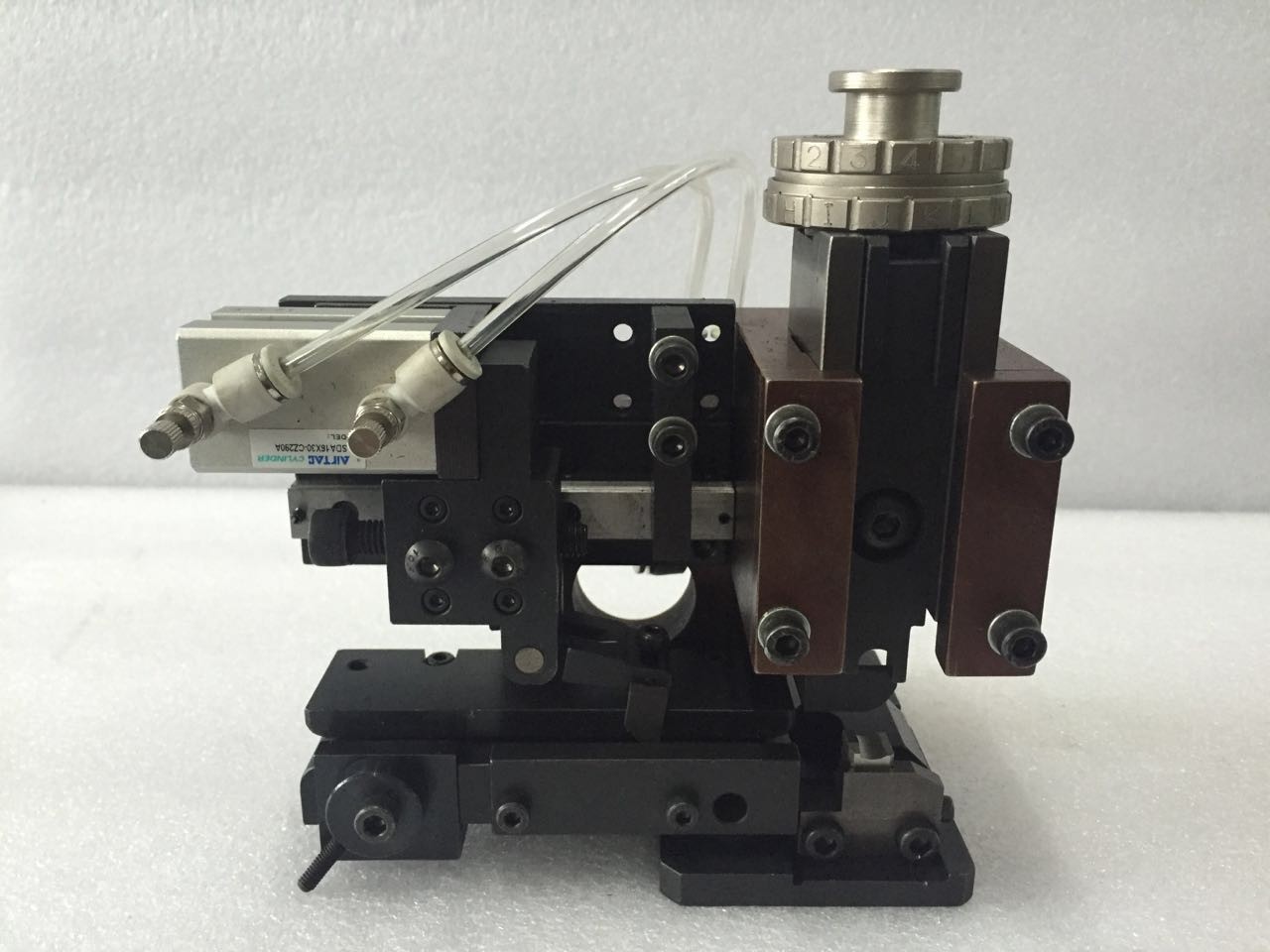

New concept of applicator body made of cast iron casting that supports customization side or front, easy replacement of specific parts by fastening the front of the pieces, broad accessibility and ease for a variety of settings.

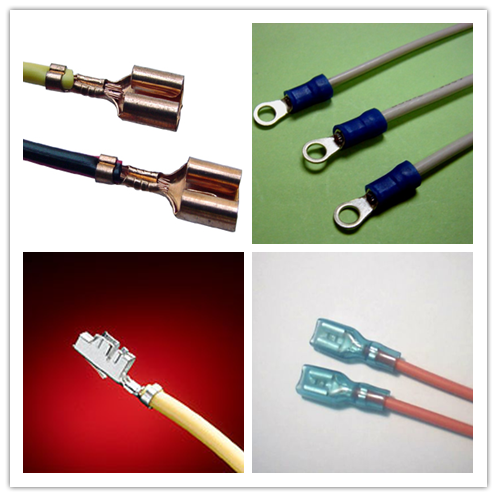

Application

• Pneumatic feeding mechanism: Terminal pitch 40mm become true

easily and feeding speed can be adjusted with facility, can be supplied

either with shot stroke cylinder or oriented cylinder for choice, which

can enable you to operate the machine freely;

• Each part has their own ID ; Supply CPK document

Switch system: Can be fitted to semi-automatic and fully automatic

crimping machine such as Komax, AMP, Mecal, etc..

Technical specifications subject to change © SEDEKE Industrial

Side Feed & Rear Feed

Continuous crimping height adjustment :Can be supplied either

with a continuous or a wedge regulating head, providing a 0.02mm

resolution or C.H./I.H. and a 2.0mm range, which satisfied your

rigorous demand on the crimping

Technical specifications

Feed type: Pneumatic

Press stroke: 40 or 30 mm (1.57“ or 1.18“)

Cross section range: 0.08 – 6 mm  2 (28 – 9 AWG)

Crimp height adjustment (wire & insulation): Increment: 0.025 mm (0.001”)

Max.:  2.0 mm

Terminal pitch range Max.: 40 mm

Terminal thickness: < 1,2mm (<0,047") )

Weight: 5.0kg

Feed System: Side Feed & Rear Feed

Important note: Hongyun recommends that wire samples be submitted in cases where there is doubt as to the processing capabilities of a particular machine.
